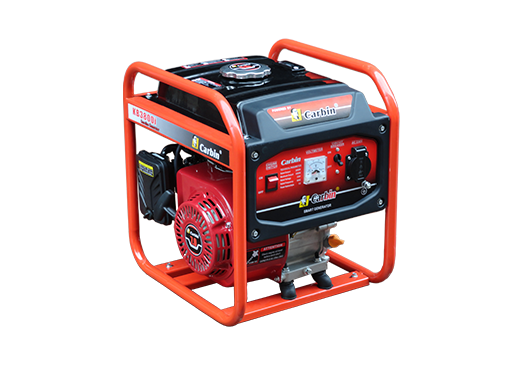

Compact inverter generator, small but powerfull, light weight as 22.0 KGS output 3.0KW maximum to drive application loads
Digital Inverter, pure sine wave output
- Digital inverter technology, stable frequency, pure sine wave output for frequency-sensitive appliance including but not limited to: light, LED, computer, laboratory apparatus etc
Open Frame, light weight, compact size
- Net weight 22KG, packing size: 445 x 380 x 465 mm
Superb Cost-performance by Carbin featured design
- Similar price with traditional 2.0KW, 2.5KW and 2.8KW Gasoline Generators
| Model | KB3800i | Carbin Open Type Gasoline Smart Inverter Generator |
| Inverter Generator | Frequency | 50HZ |
| Voltage | AC, 230 V | |
| Max Power Output | 3.2 KW | |
| Rated Power Output | 2.8 KW | |
| Power Factor | 1.0 | |
| Gasoline Engine | Engine Model | 170F |
| Engine Type | Single Cylinder, Air cooling, 4-Stroke, OHV | |
| Fuel Supply Mode | Carburetor | |
| Compression Ratio | 8.5:1 | |
| Bore×Stroke | 70 × 54 mm | |
| Displacement | 208 CC | |
| Max Power Output | 7.5hp/3600rpm | |
| Ignition Mode | TDI | |
| Starting Method | Recoil | |
| Fuel/Oil Capacity | 6.0 / 0.6 L | |
| Oil Alert | Oil Alert Protection | |
| Generator Unit Parameters | Gross/Net Weight | 23.5 / 22.2 KGS |
| Dimension L×W×H | 430× 370 × 445 mm | |
| Packing Size L×W×H | 440 × 380 × 460 mm | |
| Container Load Q'ty | 244 /20GP, 500 /40GP, 625 /40HQ | |
| Features: 1. Cost effective inverter generator will protect your electric appliances with advanced technology. 2. Compact design for light weight and portability. 3. Digital inverter technology for stabler frequency. 4. Open frame designed for better heat dissipation and longer life span. |
||
