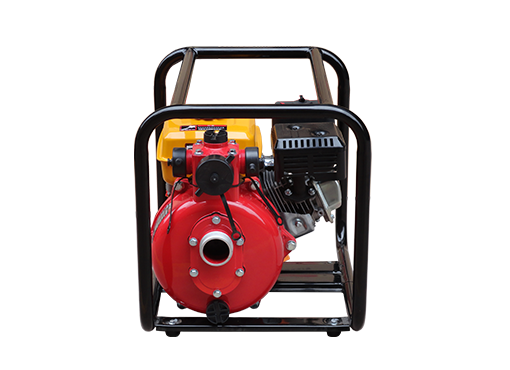

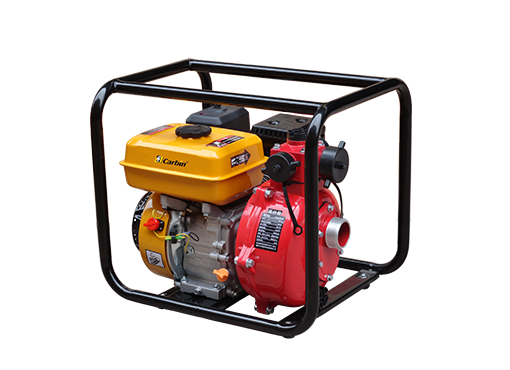

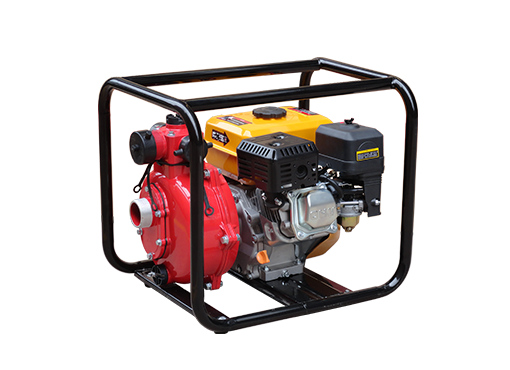

Double Impeller Gasoline Fire Pump is a high lift gasoline water pump used for high lift water pumping purposes.
| Model | WP50 | Gasoline Engine Double Impeller Fire Pump |
| Water Pump | Inlet / Outlet Size (Diameter) | 50 mm ( 2" ) / 50 mm ( 2" ) |
| Rated / Max Flow | 22 / 30 m3h | |
| Rated Resolution | 3600 rpm | |
| Rated / Max Lift | 60 / 100 m | |
| Rated / Max Suction | 4 / 7 m | |
| Self Priming Time | 3 Min | |
| Engine | Engine Model | 170F |
| Engine Type | Single Cylinder, Air Cooling, 4-Stroke, Horizontal Shaft | |
| Fuel Supply Mode | Carburetor | |
| Bore×Stroke | 70 × 54 mm | |
| Displacement | 210 CC | |
| Compression Ratio | 8.2:1 | |
| Ignition Mode | TDI | |
| Starting Method | Recoil | |
| Fuel/Oil Capacity | 3.6 / 0.6 L | |
| Oil Alert | Oil Alert Protection | |
| Complete Machine Parameters | Gross/Net Weight | 23 / 22 KGS |
| Dimension L×W×H | 475 × 370 × 395 mm | |
| Packing Size L×W×H | 485 × 380 × 410 mm | |
| Container Load Q'ty | 260 Sets/20GP, 540 Sets/40GP, 540 Sets/40HQ | |
