- Small size
- Light weight
- Wide voltage range of 220V (160V-250V) and 380V (280V-420V)
- Remote control of acceleration, deceleration, start and stop
| 型号 Model |

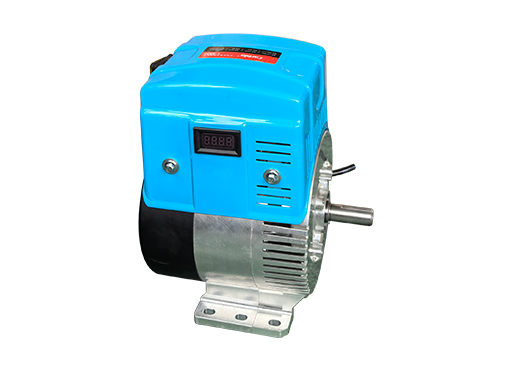

Permanent Magnet Inverter Motor | ||
| 输出功率 Power Output |
3.0 kW | 4.0 kW | 5.0 kW |
| 电压 Voltage |
220 V | 380 V | 380 V |
| 频率 Frequency |
50 Hz | 50 Hz | 50 Hz |
| 转速 Revolution |
2000-3600 rpm | 2000-3600 rpm | 2000-3600 rpm |
| 毛重/净重 Gross / Net Weight |
11.2/10.7 KGS | 12.2/11.5 KGS | 12.9/12.0 KGS |
| 外形尺寸 长x宽x高 Dimensions L × W × H |
250x205x295 mm | 250x205x295 mm | 250x205x295 mm |
| 包装尺寸 长x宽x高 Packing Size L × W × H |
270x225x335 mm | 270x225x335 mm | 270x225x335 mm |
| 装柜数量 Container Load Q'ty |
1540 pcs, 20GP 1785 pcs, 40HQ (20t) |
1540 pcs, 20GP 1639 pcs, 40HQ (20t) |
1540 pcs, 20GP 1550 pcs, 40HQ (20t) |
