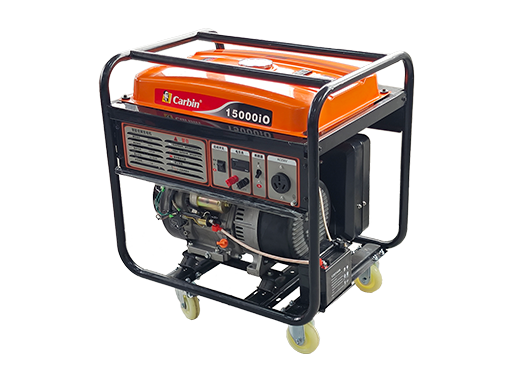

10.0KW Gasoline Inverter Generator
| 采用196F（550cc）大功率发动机 | 196F, 550cc large power engine |
| 自主技术研发逆变器，电机，可靠性，耐用性更有保障，专为负载大功率，多设备而设计 | Inverter and motor are developed with independent technology which are specifically designed to handle high-power loads and multiple devices, ensuring greater reliability and durability |
| 纯正弦波输出电压，针对精密仪器最佳！ | Pure sine wave output voltage, the best choice for precision instruments. |
| 型号 Model |
GF 15000iO |
| 频率 Frequency |
50/60 Hz |
| 额定电压 Rated Voltage |
230/110 V |
| 额定/最大功率 Rated/Max Power Output |
9.5/10.0 KW |
| 电压调节方式 Voltage Regulation |
变频 Inverter Board |
| 发动机 Engine Model |
196F |
| 功率因数 Power Factor |
1 |
| 供油方式 Fuel Supply Mode |
化油器 Carburetor |
| 缸径 x 行程 Bore x Stroke |
96 x 76 mm |
| 排量 Displacement |
550cc |
| 启动方式 Starting System |
手启动/电启动 Recoil/Electric |
| 燃油/机油容量 Fuel / Oil Capacity |
32.0/1.1 L |
| 毛重/净重 Gross / Net Weight |
93.0/89.0 KGS |
| 外形尺寸 (长x宽x高) Dimensions L × W × H |
690 × 555 × 655 mm |
| 包装尺寸 (长x宽x高) Packing Size L × W × H |
705 × 570 × 685 mm |
| 装柜数量 Container Load Q'ty |
99 pcs, 20GP 255 pcs, 40HQ |
