| 体积小 | Small size |
| 重量轻23kg | Light weight - 23kg |
| 纯正弦波输出 | Pure sine wave output |
| 变频电压稳定可靠 | Stable and reliable voltage by inverter |
| 负载能力强 | Strong load capacity |
| 省油节能 | Fuel/energy saving |
| 可带设备： - 非标2.0空压机 - 2台大电稿 - 1台200S焊机 - 1台1.5HP空调 - LED灯具，风机， - 潜水泵等 |
Equipment that can be loaded: - one non-standard 2.0 air compressor - two big electric pickaxes - one 200S welding machine - one 1.5HP air conditioner - LED lights, fans, submersible pumps, etc. |
| 型号 Model |

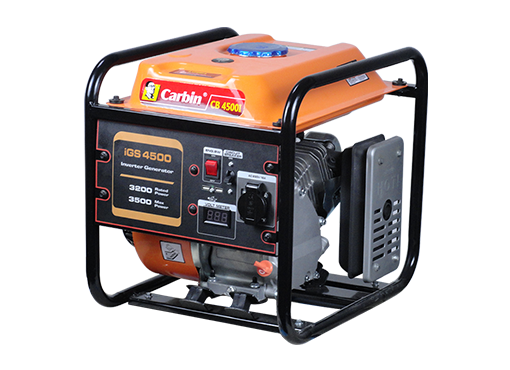

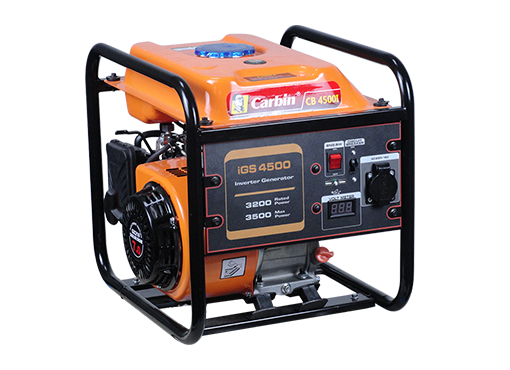

CB 4500iO |
| 频率 Frequency |
50/60 Hz |
| 额定电压 Rated Voltage |
230 V |
| 额定/最大功率 Rated/Max Power Output |
2.8/3.0 KW |
| 电压调节方式 Voltage Regulation |
变频 Inverter Board |
| 发动机 Engine Model |
170F/GX212 |
| 功率因数 Power Factor |
1 |
| 供油方式 Fuel Supply Mode |
化油器 Carburetor |
| 缸径 x 行程 Bore x Stroke |
70 x 55 mm |
| 排量 Displacement |
208cc |
| 启动方式 Starting System |
手启动 Recoil |
| 燃油/机油容量 Fuel / Oil Capacity |
10.0/0.6 L |
| 毛重/净重 Gross / Net Weight |
24.0/23.0 KGS |
| 外形尺寸 (长x宽x高) Dimensions L × W × H |
470×380×430 mm |
| 包装尺寸 (长x宽x高) Packing Size L × W × H |
495×410×455 mm |
| 装柜数量 Container Load Q'ty |
322 pcs, 20GP 779 pcs, 40HQ |
