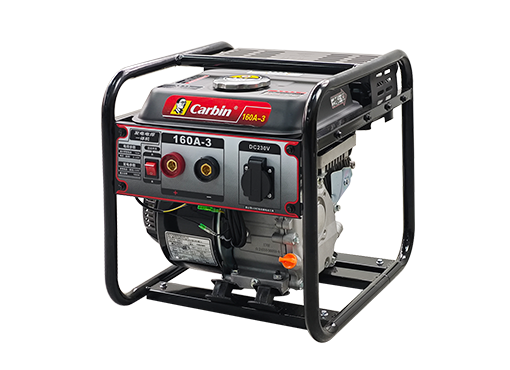

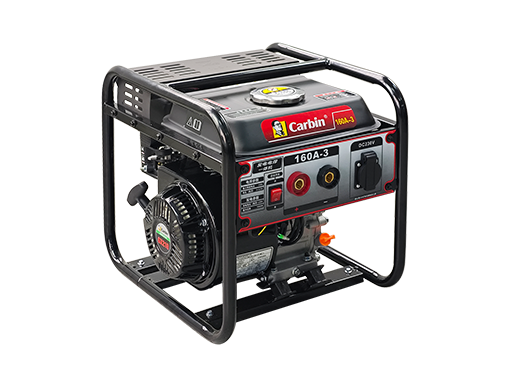

Gasoline welding Generator for simultaneous operation of 2.5-3.2mm electrode welding and 1.0KW DC output
| 体积小 | Small size |
| 重量轻22kg | Light weight - 22kg |
| 轻巧便携 | Quite portable |
| 超强性价比 | Super cost-effective |
| 最大可用3.2焊条 | Can use up to 3.2mm electrode |
| 发电输出1.0KW直流电 | 1.0KW DC output |
| 焊接发电可同时使用 | Welding and power generation can be used at the same time |
| 一机多能方便简单 | One machine for multiple uses, convenient and simple |
| 省油节能 | Fuel/energy saving |
| 直流输出1.0kw可负载设备：白炽灯，有刷电动工具类等。 | 1.0kw DC output can load: incandescent lamps, brushed power tools, etc. |
| 注意事项: 直流焊机发电输出禁止负载以下设备： LED灯，无刷类电动工具，电动机类设备等 |
Cautions: the DC output of welding machine is prohibited to load following equipments: LED lights, brushless power tools, motor equipment, etc. |
| 型号 Model |
CB 160A-3 |
| 燃油 Fuel |
汽油 Gasoline |
| 焊接方式 Welding Mode |
手弧焊 Manual Welding |
| 空载电压 No Load Voltage |
55 V |
| 焊接电压 Welding Voltage |
22 - 28 V |
| 持续工作效率 Continued Load Running Rate |
60% |
| 焊条直径 Welding Electrode Size |
2.5-4.0 mm |
| 辅助发电输出功率 Auxiliary Power Output |
1.0 KW 直流DC |
| 发动机 Engine Model |
170F/GX212 |
| 缸径 x 行程 Bore x Stroke |
70×55 mm |
| 启动方式 Starting System |
208 cc |
| 排量 Displacement |
手启动 Recoil |
| 燃油/机油容量 Fuel / Oil Capacity |
4.0/0.6 L |
| 毛重/净重 Gross / Net Weight |
24.0/22.0 KGS |
| 外形尺寸 (长x宽x高) Dimensions L × W × H |
460×375×420 mm |
| 包装尺寸 (长x宽x高) Packing Size L × W × H |
480×395×440 mm |
| 装柜数量 Container Load Q'ty |
346 pcs, 20GP 872 pcs, 40HQ |
